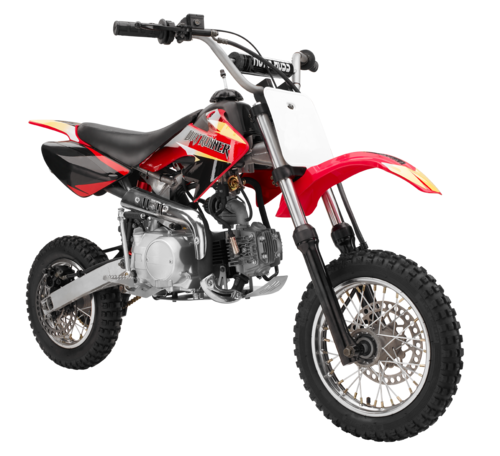

Dirt Runner 90
The Dirt Runner 90 was designed for the beginner to intermediate off-road enthusiast. A powerful four stroke engine and aggressive rear swing arm perform perfectly together. The DR 90 features “Big Bike” upgrades like hydraulic brakes and coil over hydraulic rear shock suspension.
KEY Specifications
ENGINE TYPE
4-Stroke
ENGINE DISPLACEMENT
90cc
ENGINE HORSE POWER
5.02 HP
FULL PRODUCT SPECS
Click Here
COLOR
Red
ENGINE TYPE
4-Stroke
ENGINE DISPLACEMENT
90cc
ENGINE HORSE POWER
5.02 HP
ENGINE STARTING
Kick Start
GAS TANK CAPACITY
LIGHTING
No
ENGINE APROX SPEED
40 to 45
GROUND CLEARANCE
7.48"
BRAKE FRONT
Hydraulic Disc
BRAKE REAR
Drum
LENGTH
68"
WIDTH
28"
HEIGHT
41.3"
SEAT HEIGHT
29.5"
WHEELBASE
45.3"
NET WEIGHT
154.4 lbs
WEIGHT CAPACITY
TRANSMISSION TYPE
Auto Clutch / Shift
TRANSMISSION REVERSE
No
TRANSMISSION GEARING
4 - Speed
TIRES FRONT
2.5 -17 4PR
TIRES REAR
3 - 14 6PR
SUSPENSION FRONT TYPE
Telescopic Fork
SUSPENSION REAR TYPE
Mono Shock
SUSPENSION TRAVEL FRONT
4.13"
SUSPENSION TRAVEL REAR
1.5"
